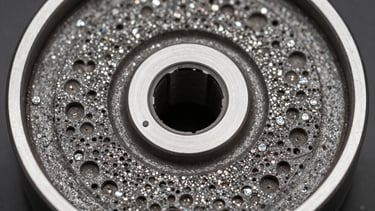

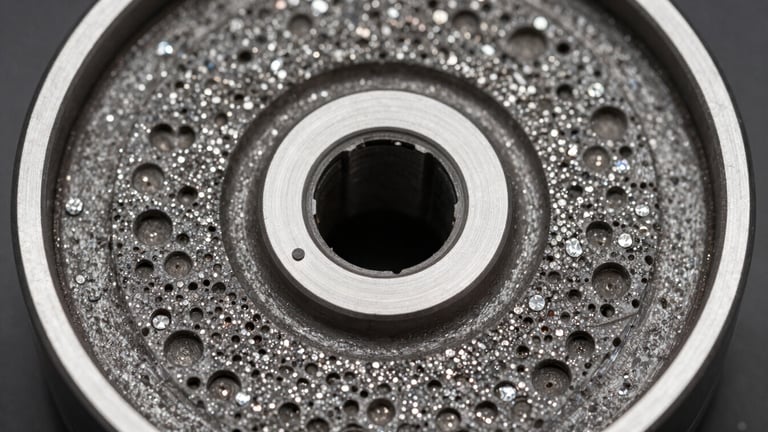

Open-Structure Wheels for Optical and PCD Grinding
Vitrified bond's porous matrix runs cooler, holds profile geometry under continuous dress cycles, and accepts coolant efficiently—eliminating thermal damage on heat-sensitive workpieces.
Bond structure engineered for precision-critical applications
Cooler cut, lower thermal risk
Efficient fluid delivery to the cut
Form held from first part to last
High porosity dissipates heat at the grinding zone, protecting glass surfaces and PCD inserts from micro-cracking and bond degradation under sustained passes.
The rigid glass matrix resists lateral deflection and retains edge geometry across continuous dress cycles—critical for optical lens blanks and tight-tolerance PCD profiles.
Open pore channels carry coolant directly to the diamond-workpiece interface, reducing friction and flushing swarf before it can re-embed in the bond matrix.
Vitrified bond wheel configurations
VB-FL Flat Face Wheel
VB-CP Cup Profile Wheel
VB-CY Cylindrical OD Wheel
VB-PR Profiled Edge Wheel

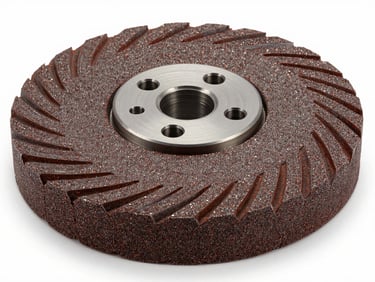

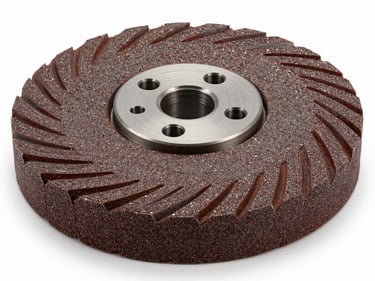

Standard flat-face profile. Grit range D46–D151. OD 100–400 mm. Suited to surface grinding of optical glass blanks and carbide flats.

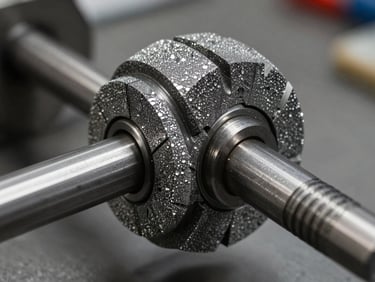

OD grinding of optical rod lenses and cylindrical PCD blanks. Grit D46–D126. Peripheral speed rated to 45 m/s. Available with flange mount.
Radius and chamfer profiles for lens edge grinding. Custom R0.1–R5 mm. Vitrified bond holds form under high-frequency oscillation cycles.

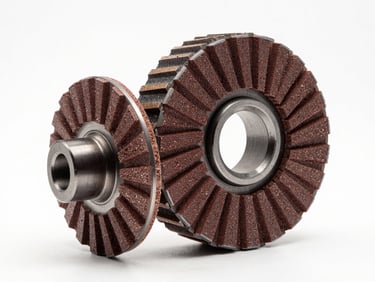

Double-cup geometry for PCD tool face grinding. Grit D64–D107. Concentricity tolerance ≤ 0.005 mm. High dress frequency compatible.
Specify your wheel. We engineer the bond.
Share your application parameters—workpiece material, tolerance stack, and production volume—and receive a binder-specific recommendation with lead time.
