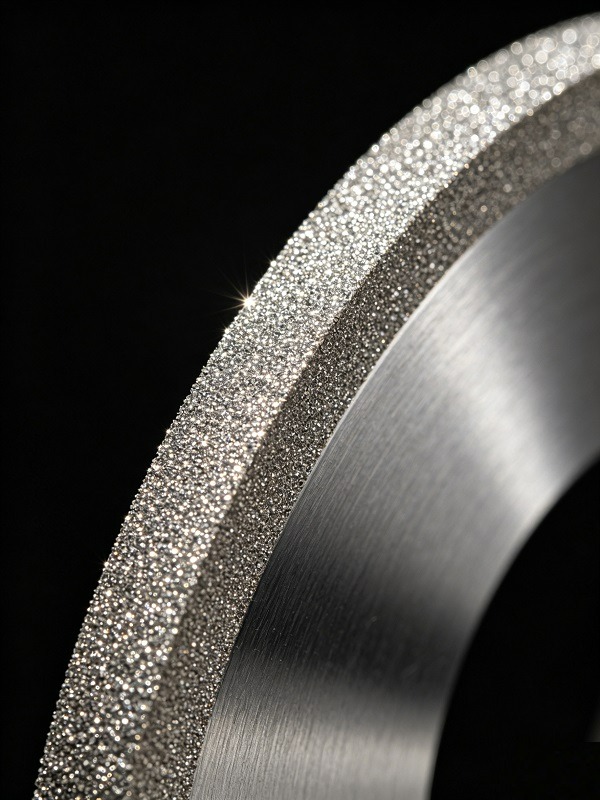

Electroplated diamond wheel for precision form and contour grinding of optical glass and ceramics
Electroplated diamond wheel for precision form and contour grinding of optical glass and ceramics

— ElectroplatedEBond Series Electroplated Diamond Wheels

Electroplated Diamond Wheels for Precision Form & Contour Grinding

Thin, high-concentration electroplated diamond wheels for form grinding, profile dressing, and high-precision tool making. Consistent grit exposure and true-to-profile geometry.

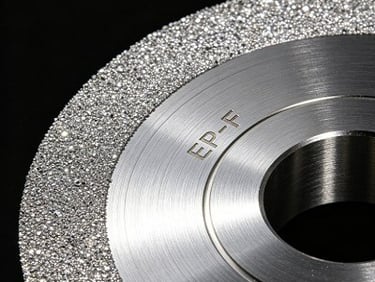

EP-F flat cup electroplated diamond wheel for surface grinding and form dressing
EP-F flat cup electroplated diamond wheel for surface grinding and form dressing

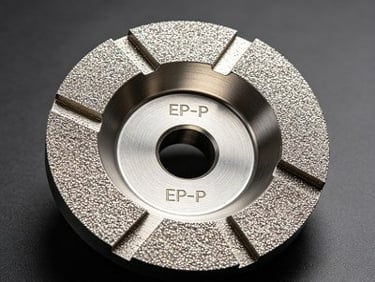

EP-P true-to-form electroplated profile diamond wheel for lens beveling & complex contour machining
EP-P true-to-form electroplated profile diamond wheel for lens beveling & complex contour machining

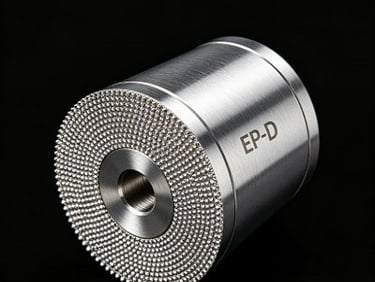

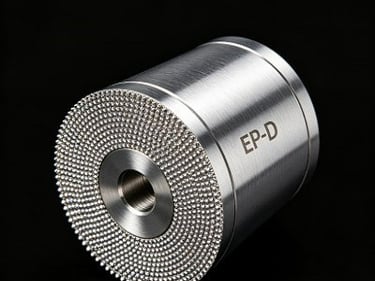

EP-D high-concentration electroplated dressing wheel for truing superabrasive grinding wheels
EP-D high-concentration electroplated dressing wheel for truing superabrasive grinding wheels

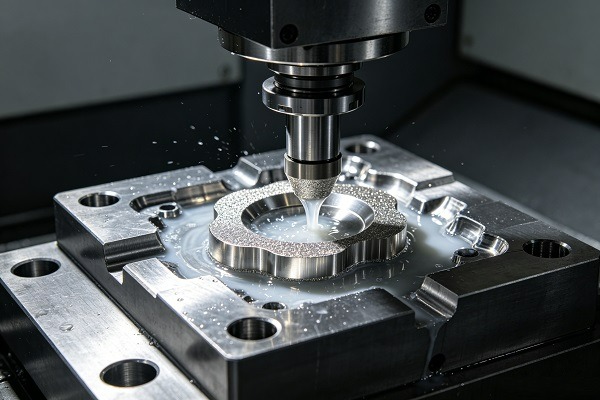

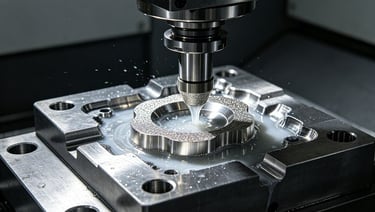

Electroplated diamond wheel performing precision contour grinding on carbide workpiece
Electroplated diamond wheel performing precision contour grinding on carbide workpiece
/ Product Line

Electroplated Wheel Configurations

EP-F Flat & Cup Wheels

EP-P Profile Wheels

EP-D Dressing & Truing Wheels

EP-B Band & Segmented Wheels

True-to-form electroplated wheels for contour grinding, lens beveling, and custom profiles. Plated directly to precision-machined steel blanks, holding ±0.01mm geometry for complex shapes.

High-concentration electroplated dressers for truing conventional and superabrasive wheels. Single-layer grit exposure delivers sharp, repeatable dressing action.

Thin-plated band wheels for slotting, cutoff, and light grinding. Open-segment designs reduce loading and improve coolant flow in wet grinding environments.

Thin-plated flat and cup wheels for surface grinding and form dressing. Uniform diamond distribution ensures consistent cutting action across the face. Ideal for optical glass, ceramics, and tool room applications.

+ Application Matrix

Comparative Performance

Bond, Grain, and Application Fit

In controlled form-grinding tests, electroplated wheels maintain geometry within ±0.01mm over 3× longer runs than resin bond alternatives. No dressing required for most applications, reducing downtime.

Electroplated diamond wheels use a single layer of diamond grit electroformed onto a precision steel or aluminum blank. No bond material covers the grains, so they cut freely with minimal heat buildup.

Key advantages over other bonds:

  • True-to-profile geometry for complex forms

  • Consistent, sharp cutting action from first use

  • Thin, controlled abrasive layer for high precision

  • No need for dressing during normal use

  • Optical glass, fused silica, sapphire

  • Hard ceramics, carbide, and hardened steel

  • Lens grinding, form dressing, and tool room applications

  • Low to medium stock removal rates where precision is critical

Request a Quote

Specify Your Electroplated Wheel

Send your workpiece material, profile geometry (DXF/STEP), grit size, and tolerance requirements. We provide a custom design with lead time and grit recommendation within 48 hours.
